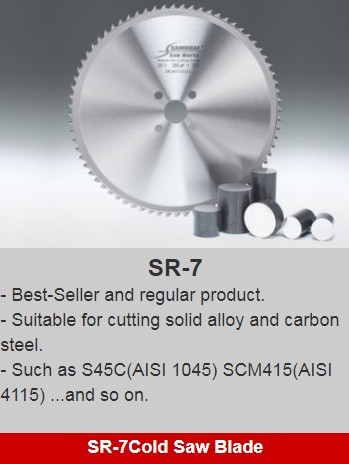

► Technical Specifications • Blade : D285 / D280 x 2.0/1.75 x 32 pinhole 4/11/63 • Sawblade rotation speed (RPM) : 50 - 150 ► Cutting Capacity • Cutting Capacity range : Full round bar D12 - D70 , Full square bar 15 - 55 mm. • Auto Feeding Range : Single step 5 - 700 mm. • Feeding System : Servo Motor Drive • Main Motor Spindle Power : 7.5 KW , SIEMENS • Servo Motor Power for Cutting : 1.0 KW • Sawblade Cutting Cooling : Air Compressor Oil Mist System • Chip Conveyor : Screw Type , Conveyor Type • Display Input Control : Touch Screen , Easy GUI ► Dimensions & Weight • Machine Weight w/o feeding loader) : 2200 KG • Machine Floor Size (WxLxH) : (WxLxH) 1950 x 1900 x 1900 • Feeding Loader Structure Floor Size : (WxLxH) 1400 x 4820 x 900 ► Machine pricing all included with M/C + Material Feed Loading + Servo Motor
